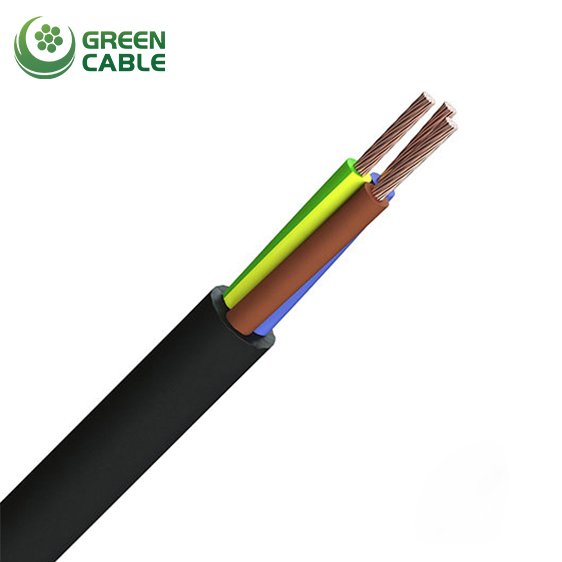

Cable H07RN-F

N.º y cruz nominal
Área seccional de los conductores

Espesor del aislamiento
Valor especificado

Espesor de la vaina
Valor especificado

Diámetro medio general

Una capa

Dos capas

Límite inferior

Límite superior

Capa interna

Capa exterior

mm2

mm

mm

mm

mm

mm

mm

1 x 1,5

0.8

1.4

-

-

5.7

7.1

1 x 2,5

0.9

1.4

-

-

6.3

7.9

1 x 4

1.0

1.5

-

-

7.2

9.0

1 x 6

1.0

1.6

-

-

7.9

9.8

1 x 10

1.2

1.8

-

-

9.5

11.9

1 x 16

1.2

1.9

-

-

10.8

13.4

1 x 25

1.4

2.0

-

-

12.7

15.8

1 x 35

1.4

2.2

-

-

14.3

17.9

1 x 50

1.6

2.4

-

-

16.5

20.6

1 x 70

1.6

2.6

1.0

1.6

18.6

23.3

1 x 95

1.8

2.8

1.1

1.7

20.8

26.0

1 x 120

1.8

3.0

1.2

1.8

22.8

28.6

1 x 150

2.0

3.2

1.3

1.9

25.2

31.4

1 x 185

2.2

3.4

1.4

2.0

27.6

34.4

1 x 240

2.4

3.5

1.4

2.1

30.6

38.3

1 x 300

2.6

3.6

1.4

2.2

33.5

41.9

1 x 400

2.8

3.8

1.5

2.3

37.4

46.8

1 x 500

3.0

4.0

1.6

2.4

41.3

52.0

1 x 630

3.0

4.1

1.6

2.5

45.5

57.0

2 x 1.0

0.8

1.3

-

-

7.7

10.0

2 x 1,5

0.8

1.5

-

-

8.5

11.0

2 x 2,5

0.9

1.7

-

-

10.2

13.1

2 x 4

1.0

1.8

-

-

11.8

15.1

2 x 6

1.0

2.0

-

-

13.1

16.8

2 x 10

1.2

3.1

1.2

1.9

17.7

22.6

2 x 16

1.2

3.3

1.3

2.0

20.2

25.7

2 x 25

1.4

3.6

1.4

2.2

24.3

30.7

3 x 1.0

0.8

1.4

-

-

8.3

10.7

3 x 1,5

0.8

1.6

-

-

9.2

11.9

3 x 2,5

0.9

1.8

-

-

10.9

14.0

3 x 4

1.0

1.9

-

-

12.7

16.2

3 x 6

1.0

2.1

-

-

14.1

18.0

3 x 10

1.2

3.3

1.3

2.0

19.1

24.2

3 x 16

1.2

3.5

1.4

2.1

21.8

27.6

3 x 25

1.4

3.8

1.5

2.3

26.1

33.0

3 x 35

1.4

4.1

1.6

2.5

29.3

37.1

3 x 50

1.6

4.5

1.8

2.7

34.1

42.9

3 x 70

1.6

4.8

1.9

2.9

38.4

48.3

3 x 95

1.8

5.3

2.1

3.2

43.3

54.0

3 x 120

1.8

5.6

2.2

3.4

47.4

60.0

3 x 150

2.0

6.0

2.4

3.6

52.0

66.0

3 x 185

2.2

6.4

2.5

3.9

57.0

72.0

3 x 240

2.4

7.1

2.8

4.3

65.0

82.0

3 x 300

2.6

7.7

3.1

4.6

72.0

90.0

4 x 1.0

0.8

1.5

-

-

9.2

11.9

4 x 1,5

0.8

1.7

-

-

10.2

13.1

4 x 2,5

0.9

1.9

-

-

12.1

15.5

4x4

1.0

2.0

-

-

14.0

17.9

4 x 6

1.0

2.3

-

-

15.7

20.0

4 x 10

1.2

3.4

1.4

2.0

20.9

26.5

4 x 16

1.2

3.6

1.4

2.2

23.8

30.1

4 x 25

1.4

4.1

1.6

2.5

28.9

36.6

4 x 35

1.4

4.4

1.7

2.7

32.5

41.1

4 x 50

1.6

4.8

1.9

2.9

37.7

47.5

4 x 70

1.6

5.2

2.0

3.2

42.7

54.0

4 x 95

1.8

5.9

2.3

3.6

48.4

61.0

4 x 120

1.8

6.0

2.4

3.6

53.0

66.0

4 x 150

2.0

6.5

2.6

3.9

58.0

73.0

4 x 185

2.2

7.0

2.8

4.2

64.0

80.0

4 x 240

2.4

7.7

3.1

4.6

72.0

91.0

4 x 300

2.6

8.4

3.3

5.1

80.0

101.0

5 x 1.0

0.8

1.6

-

-

10.2

13.1

5 x 1,5

0.8

1.8

-

-

11.2

14.4

5 x 2,5

0.9

2.0

-

-

13.3

17.0

5 x 4

1.0

2.2

-

-

15.6

19.9

5 x 6

1.0

2.5

1.0

1.5

17.5

22.2

5 x 10

1.2

3.6

1.4

2.2

22.9

29.1

5 x 16

1.2

3.9

1.5

2.4

26.4

33.3

5x25

1.4

4.4

1.7

2.7

32.0

40.4
