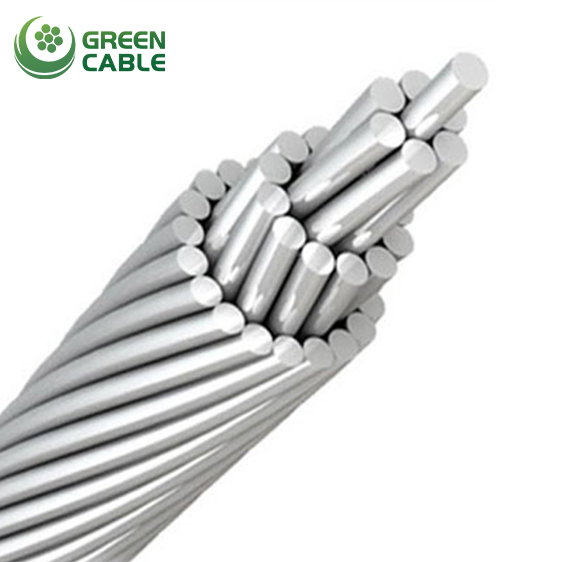

El conductor de aleación de aluminio AAAC se utiliza como conductor aéreo desnudo para distribución primaria y secundaria. Diseñado con una aleación de aluminio de alta resistencia para lograr una alta relación resistencia-peso, ofrece las mejores características de flecha. La aleación de aluminio ofrece mayor resistencia a la corrosión que el ACSR.
Alambres de aleación de aluminio 6201-T81, trenzados concéntricamente.
ASTM B399, BS EN50183, BS 3242, DIM 48201, IEC 61089
|
Código |
Nominal |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
mm2 |
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
|
Caja |
18.8 |
7/1.85 |
5.55 |
51.4 |
5.6 |
1.7480 |
|
Acacia |
23.8 |
7/2.08 |
6.24 |
64.9 |
7.0 |
1.3828 |
|
Almendra |
30.1 |
7/2.34 |
7.02 |
82.2 |
8.9 |
1.0926 |
|
Cedro |
35.5 |
7/2.54 |
7.62 |
96.8 |
10.5 |
0.9273 |
|
Deodar |
42.2 |
7/2.77 |
8.31 |
115.2 |
12.4 |
0,7797 |
|
Abeto |
47.8 |
7/2.95 |
8.85 |
130.6 |
14.1 |
0.6875 |
|
Color avellana |
59.9 |
7/3.30 |
9.90 |
163.4 |
17.7 |
0.5494 |
|
Pino |
71.6 |
7/3.61 |
10.83 |
195.6 |
21.1 |
0.4591 |
|
Acebo |
84.1 |
7/3.91 |
11.73 |
229.5 |
24.8 |
0.3913 |
|
Sauce |
89.7 |
7/4.04 |
12.12 |
245.0 |
26.5 |
0.3665 |
|
Roble |
118.9 |
7/4.65 |
13,95 |
324.5 |
35.1 |
0.2767 |
|
Mora |
150.9 |
19/3.18 |
15,90 |
414.3 |
44.5 |
0,2192 |
|
Ceniza |
180.7 |
19/3.48 |
17.40 |
496.1 |
53.3 |
0.1830 |
|
Olmo |
211.0 |
19/3.76 |
18.80 |
579.2 |
62.2 |
0.1568 |
|
Álamo |
239.4 |
37/2.87 |
20.09 |
659.4 |
70.6 |
0.1387 |
|
Sicomoro |
303.2 |
37/3.23 |
22.61 |
835.2 |
89.4 |
0.1095 |
|
Upas |
362.1 |
37/3.53 |
24.71 |
997.5 |
106.8 |
0.0917 |
|
Tejo |
479.0 |
37/4.06 |
28.42 |
1319.6 |
141.3 |
0.0693 |
|
Totara |
498.1 |
37/4.14 |
28,98 |
1372.1 |
146.9 |
0.0666 |
|
Rubus |
586.9 |
61/3.50 |
31.50 |
1622.0 |
173.1 |
0.0567 |
|
Sorbus |
659.4 |
61/3.71 |
33.39 |
1822.5 |
194.5 |
0.0505 |
|
Araucaria |
821.1 |
61/4.14 |
37.26 |
2269.4 |
242.2 |
0.0406 |
|
Secoya |
996.2 |
61/4.56 |
41.04 |
2753.2 |
293.9 |
0.0334 |
|
Código |
Nominal |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
mm2 |
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
|
16 |
18.4 |
7/1.83 |
5.49 |
50.4 |
5.4 |
1.7896 |
|
25 |
28.8 |
7/2.29 |
6.87 |
78.7 |
8.5 |
1.1453 |
|
40 |
46 |
7/2.89 |
8.67 |
125.9 |
13.6 |
0.7158 |
|
63 |
72.5 |
7/3.63 |
10.89 |
198.3 |
21.4 |
0.4545 |
|
100 |
115 |
19/2.78 |
13.90 |
316.3 |
34.0 |
0.2877 |
|
125 |
144 |
19/3.10 |
15.50 |
395.4 |
42.4 |
0.2302 |
|
160 |
184 |
19/3.51 |
17.55 |
506.1 |
54.3 |
0,1798 |
|
200 |
230 |
19/3.93 |
19.65 |
632.7 |
67.9 |
0.1439 |
|
250 |
288 |
19/4.39 |
21,95 |
790.8 |
84.9 |
0.1151 |
|
315 |
363 |
37/3.53 |
24.71 |
998.9 |
107.0 |
0.0916 |
|
400 |
460 |
37/3.98 |
27.86 |
1268.4 |
135.8 |
0.0721 |
|
450 |
518 |
37/4.22 |
29.54 |
1426.9 |
152.8 |
0.0641 |
|
500 |
575 |
37/4.45 |
31.15 |
1585.5 |
169.8 |
0.0577 |
|
560 |
645 |
61/3.67 |
33.03 |
1778.4 |
190.1 |
0.0516 |
|
630 |
725 |
61/3.89 |
35.01 |
2000.7 |
213.9 |
0.0458 |
|
710 |
817 |
61/4.13 |
37.17 |
2254.8 |
241.1 |
0.0407 |
|
800 |
921 |
61/4.38 |
39.42 |
2540.6 |
271.6 |
0.0361 |
|
900 |
1036 |
91/3.81 |
41.91 |
2861.1 |
305.6 |
0.0321 |
|
1000 |
1151 |
91/4.01 |
44.11 |
3179.0 |
339.5 |
0.0289 |
|
1120 |
1289 |
91/4.25 |
46,75 |
3560.5 |
380.3 |
0.0258 |
|
1250 |
1439 |
91/4.49 |
49.39 |
3973.7 |
424.4 |
0.0231 |
|
Nominal |
Actual |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
mm2 |
mm2 |
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
16 |
15.9 |
7/1.70 |
5.1 |
43 |
4.4 |
2.0742 |
|
25 |
24.3 |
7/2.10 |
6.3 |
66 |
6.8 |
1.3593 |
|
35 |
34.4 |
7/2.50 |
7.5 |
94 |
9.6 |
0.9591 |
|
50 |
49.5 |
7/3.00 |
9.0 |
135 |
13.8 |
0.6660 |
|
50 |
48.4 |
19/1.80 |
9.0 |
133 |
13.5 |
0.6849 |
|
70 |
65.8 |
19/2.10 |
10.5 |
181 |
18.4 |
0.5032 |
|
95 |
93.3 |
19/2.50 |
12.5 |
256 |
26.1 |
0.3551 |
|
120 |
117.0 |
19/2.80 |
14.0 |
322 |
32.7 |
0.2831 |
|
150 |
147.1 |
37/2.25 |
15.8 |
406 |
41.1 |
0,2256 |
|
185 |
181.6 |
37/2.50 |
17.5 |
500 |
50.7 |
0.1828 |
|
240 |
242.5 |
61/2.25 |
20.3 |
670 |
67.7 |
0.1371 |
|
300 |
299.4 |
61/2.50 |
22.5 |
827 |
83.6 |
0.1110 |
|
400 |
400.1 |
61/2.89 |
26.0 |
1104 |
111.8 |
0.0831 |
|
500 |
499.8 |
61/3.23 |
29.1 |
1379 |
139.6 |
0.0665 |
|
625 |
626.2 |
91/2.96 |
32.6 |
1732 |
174.9 |
0.0531 |
|
800 |
802.1 |
91/3.35 |
36.9 |
2218 |
224.0 |
0.0415 |
|
1000 |
999.7 |
91/3.74 |
41.1 |
2767 |
279.2 |
0.0333 |
|
Código |
Área total |
Equivalente de grado 1350 |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
|
AWG o MCM |
mm2 |
AWG o MCM |
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
|
Akron |
30.6 |
15.5 |
6 |
7/1.68 |
5.04 |
43 |
4.9 |
2.1588 |
|
Alton |
48.7 |
24.7 |
4 |
7/2.12 |
6.36 |
68 |
7.8 |
1.3557 |
|
Ames |
77.5 |
39.2 |
2 |
7/2.67 |
8.01 |
108 |
12.4 |
0.8547 |
|
Azusa |
123.3 |
62.4 |
1 |
7/3.37 |
10.11 |
171 |
18.9 |
0.5365 |
|
Anaheim |
155.4 |
78.6 |
2/0 |
7/3.78 |
11.34 |
216 |
23.8 |
0.4264 |
|
Amherst |
195.7 |
99.3 |
3/0 |
7/4.25 |
12,75 |
272 |
30.0 |
0.3373 |
|
Alianza |
246.9 |
125.1 |
4/0 |
7/4.77 |
14.31 |
343 |
37.8 |
0.2678 |
|
Butte |
312.8 |
158.6 |
266.8 |
19/3.26 |
16.30 |
435 |
46.5 |
0.2112 |
|
Cantón |
394.5 |
199.9 |
336.4 |
19/3.66 |
18.30 |
548 |
58.6 |
0.1676 |
|
El Cairo |
465.4 |
236.4 |
397.5 |
19/3.98 |
19,90 |
649 |
69.3 |
0.1417 |
|
Darién |
559.5 |
283.6 |
477 |
19/4.36 |
21.80 |
778 |
83.1 |
0.1181 |
|
Elgin |
652.6 |
331.0 |
556.5 |
19/4.71 |
23.55 |
908 |
97.0 |
0.1012 |
|
Pedernal |
740.8 |
374.5 |
636 |
19/3.59 |
25.13 |
1028 |
107.4 |
0.0894 |
|
Greeley |
927.2 |
469.6 |
795 |
19/4.02 |
28.14 |
1289 |
134.6 |
0.0713 |
|
Nominal |
Actual |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
mm2 |
mm2 |
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
10 |
10.02 |
7/1.35 |
4.05 |
27.4 |
3.26 |
3.3205 |
|
16 |
16.08 |
7/1.71 |
5.13 |
44.0 |
5.22 |
2.0695 |
|
25 |
24,94 |
7/2.13 |
6.39 |
68.2 |
8.11 |
1.3339 |
|
35 |
34.91 |
7/2.52 |
7.56 |
95.5 |
11.35 |
0.9529 |
|
50 |
50.14 |
7/3.02 |
9.06 |
137.2 |
16.30 |
0.6635 |
|
70 |
70.07 |
7/3.57 |
10.7 |
191.7 |
22.07 |
0.4748 |
|
95 |
95.14 |
7/4.16 |
12.5 |
261.5 |
29,97 |
0.3514 |
|
150 |
149,96 |
19/3.17 |
15.9 |
412.2 |
48.74 |
0.2229 |
|
210 |
209.85 |
19/3.75 |
18.8 |
576.8 |
66.10 |
0.1593 |
|
240 |
239,96 |
19/4.01 |
20.1 |
661.1 |
75.59 |
0.1397 |
|
300 |
299.43 |
37/3.21 |
22.5 |
825.0 |
97.32 |
0.1119 |
|
400 |
399,98 |
37/3.71 |
26.0 |
1102.0 |
125,99 |
0.0838 |
|
500 |
500.48 |
37/4.15 |
29.1 |
1380.9 |
157.65 |
0.0671 |
|
630 |
631.30 |
61/3.63 |
32.7 |
1741.8 |
198.86 |
0.0532 |
|
800 |
801.43 |
61/4.09 |
36.8 |
2211.3 |
252.45 |
0.0419 |
|
1000 |
1000.58 |
61/4.57 |
41.1 |
2760.7 |
315.18 |
0.0335 |
|
Nominal |
Actual |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
mm2 |
mm2 |
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
10 |
10.02 |
7/1.35 |
4.05 |
27.4 |
2.96 |
3.2891 |
|
16 |
16.08 |
7/1.71 |
5.13 |
44.0 |
4.74 |
2.0500 |
|
25 |
24,94 |
7/2.13 |
6.39 |
68.2 |
7.36 |
1.3213 |
|
35 |
34.91 |
7/2.52 |
7.56 |
95.5 |
10.30 |
0.9439 |
|
50 |
50.14 |
7/3.02 |
9.06 |
137.2 |
14,79 |
0.6573 |
|
70 |
70.07 |
7/3.57 |
10.7 |
191.7 |
20.67 |
0.4703 |
|
95 |
95.14 |
7/4.16 |
12.5 |
261.5 |
28.07 |
0.3481 |
|
120 |
120.36 |
19/2.84 |
14.2 |
330.8 |
35.51 |
0,2751 |
|
150 |
149,96 |
19/3.17 |
15.9 |
412.2 |
44.24 |
0.2208 |
|
210 |
209.85 |
19/3.75 |
18.8 |
576.8 |
61.91 |
0.1578 |
|
240 |
239,96 |
19/4.01 |
20.1 |
661.1 |
70.79 |
0.1383 |
|
300 |
299.43 |
37/3.21 |
22.5 |
825.0 |
88.33 |
0.1109 |
|
400 |
399,98 |
37/3.71 |
26.0 |
1102.0 |
117,99 |
0.0830 |
|
500 |
500.48 |
37/4.15 |
29.1 |
1380.9 |
147.64 |
0.0664 |
|
630 |
631.30 |
61/3.63 |
32.7 |
1741.8 |
186.23 |
0.0527 |
|
800 |
801.43 |
61/4.09 |
36.8 |
2211.3 |
236.42 |
0.0415 |
|
1000 |
1000.58 |
61/4.57 |
41.1 |
2760.7 |
295.17 |
0.0332 |
|
Código |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
|
Diamante |
7/2.50 |
7.50 |
94 |
9.6 |
0.9670 |
|
Dolomita |
7/2.75 |
8.25 |
114 |
11.6 |
0,7990 |
|
Esmeralda |
7/3.00 |
9.00 |
135 |
13.9 |
0.6710 |
|
Granate |
7/3.75 |
11.25 |
212 |
21.7 |
0.4300 |
|
Jade |
7/4.50 |
13.50 |
305 |
31.2 |
0.2980 |
|
Jaspe |
7/4.75 |
14.25 |
340 |
34.8 |
0.2680 |
|
Ópalo |
19/3.25 |
16.25 |
434 |
44.2 |
0.2120 |
|
Patronita |
19/3.50 |
17.50 |
503 |
51.3 |
0.1830 |
|
Perla |
19/3.75 |
18,75 |
577 |
58.8 |
0.1590 |
|
Rubí |
37/3.00 |
21.00 |
721 |
73.5 |
0.1280 |
|
Rutenio |
37/3.25 |
22,75 |
846 |
86.1 |
0.1090 |
|
Rutilo |
19/4.75 |
23,75 |
926 |
94.4 |
0.0991 |
|
Zafiro |
37/3.75 |
26.25 |
1127 |
115.0 |
0.0819 |
|
Espinela |
61/3.25 |
29.25 |
1398 |
135.0 |
0.0662 |
|
Tantalio |
61/3.50 |
31.50 |
1621 |
156.0 |
0.0572 |
|
Topacio |
61/3.75 |
33,75 |
1861 |
179.0 |
0.0498 |
|
Código |
N.°/diámetro del alambre |
Aprox. General |
Aprox. |
Ruptura calculada |
Resistencia máxima de CC |
|
N.º/mm |
mm |
kilogramos/km |
kN |
Ω/km |
|
|
Aster 22 |
7/2.00 |
6.00 |
60.0 |
7.15 |
1.4989 |
|
Aster 34 |
7/2.50 |
7.50 |
93.8 |
11.17 |
0.9593 |
|
Aster 55 |
7/3.15 |
9.45 |
148.9 |
17.73 |
0.6042 |
|
Aster 76 |
19/2.25 |
11.3 |
207.4 |
24.55 |
0.4388 |
|
Aster 117 |
19/2.80 |
14.0 |
321.2 |
38.02 |
0.2833 |
|
Aster 148 |
19/3.15 |
15.8 |
406.5 |
48.12 |
0.2239 |
|
Aster 182 |
37/2.50 |
17.5 |
500.3 |
59.03 |
0.1831 |
|
Aster 228 |
37/2.80 |
19.6 |
627.6 |
74.04 |
0.1460 |
|
Aster 288 |
37/3.15 |
22.1 |
794.3 |
93.71 |
0.1154 |
|
Aster 366 |
37/3.55 |
24.9 |
1008.9 |
115.36 |
0.0908 |
|
Aster 570 |
61/3.45 |
31.1 |
1576.0 |
185.33 |
0.0585 |
|
Aster 851 |
91/3.45 |
38.0 |
2360.7 |
276.47 |
0.0394 |
|
Aster 1144 |
91/4.00 |
44.0 |
3173.4 |
360.22 |
0.0293 |
|
Aster 1596 |
127/4.00 |
52.0 |
4427.5 |
502.72 |
0.0210 |
No dude en enviarnos su consulta en el siguiente formulario. Le responderemos en 24 horas.
